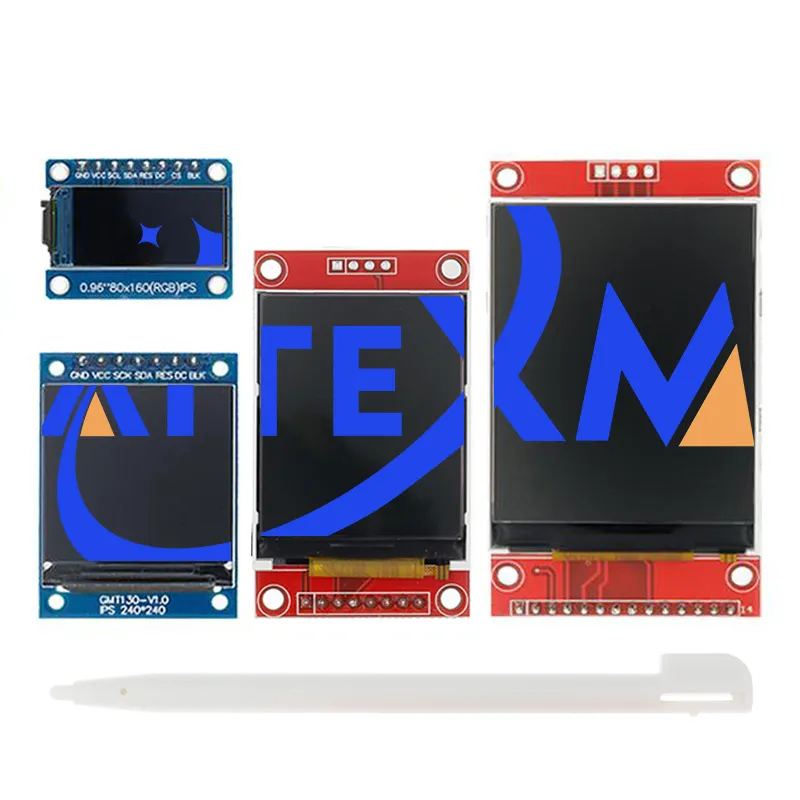

1.Features
1.77 inchTFT LCD module:
1.8 inch TFT LCD module:
1.8-inch SPI serial port 128*160 Instructions
/*
Program default IO connection method:
sbit LCD_CS =P0^0; //chip select
sbit LCD_AO =P0^2; //data/command switch
sbit LCD_SDA =P1^5; // Data
sbit LCD_SCK =P1^7; //clock
sbit LCD_REST =P0^1; //reset
*/
●TFT power supply: screen power supply is 2.8-3.3V; remember not to use 5V
(modules with PCB have inherited 3V regulator IC , 5V can be input)
●Backlight power supply (LED pin): The maximum backlight power supply is 3.2V.
(5 ohm current limiting resistor can be connected in series under 3.3V power supply or 25 ohm resistor in series under 5V).
Product Description
-
2.4-inch color screen,support 65K color display,display rich colors
-
320X240 resolution, optional touch function
-
Using the SPI serial bus, it only takes a few IOs to illuminate the display
-
Easy to expand the experiment with SD card slot
-
Provide a rich sample program
-
Military-grade process standards, long-term stable work
-
Provide underlying driver technical support
Product Parameters
|
Name |
Parameter |
|
Display Color |
RGB 65K color |
|
SKU |
have touch screen: MSP2402 |
|
have no touch screen: MSP2401 |
|
|
Screen Size |
2.4(inch) |
|
Type |
TFT |
|
Driver IC |
ST7789V |
|
Resolution |
320*240 (Pixel) |
|
Module Interface |
4-wire SPI interface |
|
Active Area (AA area) |
36.72×48.96(mm) |
|
Module PCB Size |
77.18×42.72(mm) |
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~70℃ |
|
VCC power voltage |
3.3V~5V |
|
Logic IO port voltage |
3.3V(TTL) |
|
Power Consumption |
TBD |
|
Rough Weight(Package containing) |
No touch: 26(g) / With touch: 36(g) |
