Arduino is an accessible entry point to embedded computing, but professional embedded systems engineering quickly moves beyond high-level sketches and blocking delay loops. Professional firmware demands an intimate understanding of how memory, silicon peripherals, real-time schedulers, and electrical signals interact under severe resource constraints.

1. C and C++ Under Resource Constraints

Modern embedded development requires deep fluency in low-level language semantics rather than casual syntax familiarity:

  • Fixed-Width Types: Always use stdint.h (e.g., uint8_t, int32_t) to prevent silent target-dependent integer size discrepancies.
  • Memory Lifetime and Modifiers: Understand exactly when to apply volatile (for memory-mapped I/O and shared ISR flags), const (to place lookup tables in Flash ROM rather than scarce SRAM), and static (for private scope and persistent storage).
  • Linker Scripts and Memory Sections: Inspect map files generated by GCC/Clang to trace the exact allocation of .text, .rodata, .data, .bss, and stack/heap usage.

For detailed memory budgeting, read our companion guide on how to write embedded C that uses less RAM and is easier to debug.

2. Microcontroller Hardware Architecture & Register Models

A professional engineer works directly from silicon vendor technical reference manuals (TRMs) and datasheets:

  • Clock Trees and PLLs: Configure system oscillators, prescalers, and peripheral clock gates to optimize computational throughput versus dynamic power draw.
  • Memory-Mapped Peripherals: Access hardware using peripheral structs with hardware-defined offsets, bitmasks, and atomic read-modify-write operations.
  • Direct Memory Access (DMA): Offload high-bandwidth data transfers (ADC buffers, SPI/UART displays, sensor telemetry) without stalling the CPU core.
  • Interrupt Vector Tables (IVT): Manage priority levels, tail-chaining, latency budgets, and nesting to prevent starvation of time-critical control loops.

3. Digital Hardware Interfaces at the Wire Level

Protocols must be understood electrically and physically, not merely as software API calls:

  • UART: Asynchronous framing, bit duration tolerances (±2% baud budget), start/stop transitions, and FIFO overrun detection.
  • SPI: Synchronous full-duplex transfers, chip-select timing edges, and clock polarity/phase (CPOL/CPHA) sampling contracts.
  • I2C: Open-drain line physics, bus capacitance limits (400 pF max), pull-up resistor sizing, rise time requirements, and ACK/NACK fault isolation.
  • CAN / CAN-FD: Differential signaling, bit stuffing, non-destructive bitwise arbitration, and message frame integrity in noisy industrial environments.

4. Source-Level Hardware Debugging Tools

When firmware behaves unexpectedly, real measurements take precedence over speculative code edits:

  • SWD/JTAG Debuggers: Master non-intrusive runtime inspection, hardware breakpoints, data watchpoints, and instruction trace using tools like Segger J-Link or ST-LINK.
  • Mixed-Signal Oscilloscopes & Logic Analyzers: Capture real bus transitions, measure setup/hold margins, observe ringing, verify ground integrity, and decode transactions protocol-by-protocol.
  • Power Profilers: Measure microamp current spikes during deep sleep and RF wake-up phases to validate battery lifetime targets.

5. Real-Time Thinking & RTOS Architecture

Moving beyond single-threaded superloops requires structured concurrency:

  • Deterministic Scheduling: Understand preemptive priority-based scheduling, cooperative yielding, and rate-monotonic analysis.
  • Synchronization Primitives: Choose correctly between binary semaphores (signaling), counting semaphores (resource counting), and mutexes (mutual exclusion with priority inheritance to prevent priority inversion).
  • Inter-Task Communication: Pass data safely via thread-safe message queues, ring buffers, and event flags rather than uncontrolled global variables.

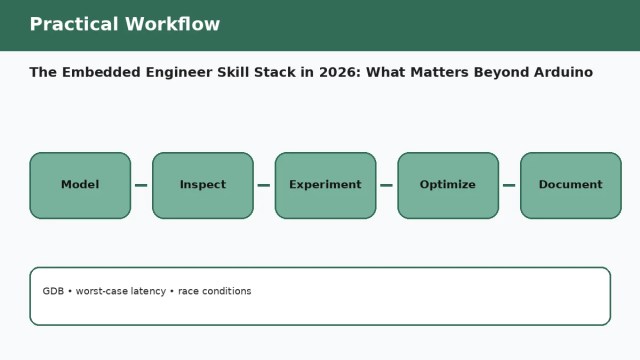

A Practical Roadmap for Career Progression

  1. Phase 1: Transition an Arduino prototype to bare-metal C without Arduino libraries, controlling GPIOs via registers.
  2. Phase 2: Implement non-blocking state machines and hardware timer interrupts instead of delay().
  3. Phase 3: Write your own reusable I2C or SPI sensor driver directly from the component’s register datasheet.
  4. Phase 4: Port the application to an RTOS (FreeRTOS or Zephyr), separating UI, networking, and sensor acquisition into dedicated tasks.
  5. Phase 5: Integrate hardware watchdog timers (WDT), brownout detection (BOD), and a secure dual-bank bootloader for fail-safe firmware updates.

Primary Authoritative References

  • ARM Cortex-M Programming and Architecture Reference Manuals (ARM Ltd.)
  • FreeRTOS Real-Time Kernel Implementation Guide (Amazon Web Services)
  • Zephyr Project Developer Documentation (The Linux Foundation)
  • BARR-C:2018 Embedded C Coding Standard (Barr Group)

Conclusion

The true embedded engineering skill stack is not defined by which development board you buy. It is defined by your ability to bridge software logic with physical silicon constraints, design deterministic real-time architectures, and prove electrical correctness on physical wires.
