Microcontroller, microprocessor and SoC are not three performance tiers. They describe different levels of integration and system architecture. Choosing correctly affects power, boot time, real-time behavior, PCB complexity, software stack and cost.
The most useful question is not “which is more powerful?” It is: what kind of computer does the product actually need?
Microcontroller (MCU): a complete control computer on one chip
A typical MCU integrates the processor core, SRAM, nonvolatile program memory or a boot interface, timers, GPIO and peripheral controllers into one device.
Raspberry Pi’s RP2040, for example, integrates dual Cortex-M0+ cores, 264 kB of SRAM, UART, SPI, I2C, PWM, ADC and USB control hardware. That is the classic MCU pattern: CPU plus tightly integrated peripherals intended for deterministic embedded control.
MCUs are strong when you need:
- Fast startup.
- Deterministic interrupt and I/O timing.
- Low power consumption.
- Simple PCB design.
- Direct control of sensors, motors and actuators.
- Bare-metal firmware or a small RTOS.
Typical products include motor controllers, appliances, sensor nodes, battery devices, industrial I/O and real-time control systems.
Microprocessor (MPU): application processing with external system resources
In embedded terminology, an MPU commonly uses application-class CPU cores and relies more heavily on external DDR memory and nonvolatile storage. ST describes its STM32MP family around Cortex-A processors with an MMU, external memory interfaces and support for rich operating systems such as Linux.
The memory management unit is important because it enables virtual-memory and process-isolation features expected by Linux-class systems.
MPUs are strong when you need:
- Linux or another rich operating system.
- Complex networking stacks and services.
- Large application frameworks.
- High-resolution graphics.
- Large external RAM.
- Filesystem-heavy applications.
- Containers, package management or rich user-space software.
The trade-off
An MPU system usually needs more external components: DDR, flash/eMMC, PMICs and more complex PCB routing. Boot time and power consumption are also typically higher than for a simple MCU design.
That extra complexity is justified only when the software requirements need it.
SoC: a broader integration term
System on Chip describes a chip that integrates major subsystems that might otherwise be separate components. An SoC can include CPU cores, GPU, NPU, memory controllers, video engines, security blocks, radio subsystems and many peripherals.
This means “SoC” overlaps with MCU and MPU terminology. A modern application processor is usually an SoC. Many wireless MCUs are also highly integrated systems-on-chip. The terms describe different perspectives:
- MCU/MPU usually describes the processing model and software environment.
- SoC emphasizes how many system functions are integrated into one silicon device.
Do not classify a chip by clock speed
A 500 MHz MCU does not automatically become an MPU, and a 1 GHz application processor is not automatically the right choice for precise real-time motor control.
Architecture matters more than headline frequency:
- Does it include an MMU?
- Is program memory internal or external?
- How deterministic is interrupt latency?
- Does it run Linux or bare metal?
- How much external memory is required?
- Which peripherals are integrated?
Real-time behavior is often the deciding factor
An MCU normally gives firmware direct ownership of interrupts and peripherals. With a bare-metal loop or RTOS, the engineer can design tightly bounded response paths.
A Linux MPU provides much richer software services, but normal user-space Linux is not automatically hard real time. If a product requires both rich Linux software and precise real-time control, a heterogeneous design may be appropriate.
Hybrid chips blur the boundary
Modern devices increasingly combine application and real-time cores. ST’s STM32MP platforms, for example, combine Cortex-A application processing with Cortex-M cores on the same device.
This allows Linux to handle networking, UI and high-level applications while the Cortex-M subsystem handles deterministic control. The architecture is powerful, but inter-core communication, boot sequencing and shared-resource ownership must be designed deliberately.
Memory architecture changes the PCB
An MCU with internal SRAM and flash can often operate with very few external components. That reduces routing difficulty and makes early prototypes straightforward.
An MPU using external DDR requires controlled impedance, length matching, power sequencing and more demanding PCB layout. The software team also needs a bootloader, device tree, kernel configuration and storage strategy.
The cheapest processor is irrelevant if the total system becomes expensive to design and maintain.
Power and boot time matter
A battery sensor that wakes for 20 ms, takes a reading and sleeps does not benefit from a Linux-class processor. An MCU designed for low-power sleep can be a much better system choice.
Conversely, a product with a touchscreen, browser engine, camera pipeline and secure cloud applications may become painfully complex if forced onto an MCU just to reduce component count.
Decision table
| Requirement | Likely starting point |
|---|---|
| Precise motor/control loops | MCU |
| Battery sensor node | MCU |
| Simple industrial controller | MCU |
| Linux gateway | MPU/application SoC |
| Rich graphical HMI | MPU or high-end MCU depending on UI |
| Camera + AI inference + Linux | Application SoC/MPU |
| Linux plus deterministic motor control | Heterogeneous MPU/SoC or MPU + separate MCU |
When a separate MCU and MPU is cleaner
Putting everything on one powerful SoC is not always the best design. A separate MCU can own safety-critical or real-time I/O while an MPU runs Linux and the user interface.
This separation can provide:
- Independent watchdog/recovery domains.
- Clear ownership of motors and safety outputs.
- Ability to reboot Linux without losing real-time control.
- Simpler certification boundaries in some products.
The cost is an additional communication link and another firmware image to maintain.

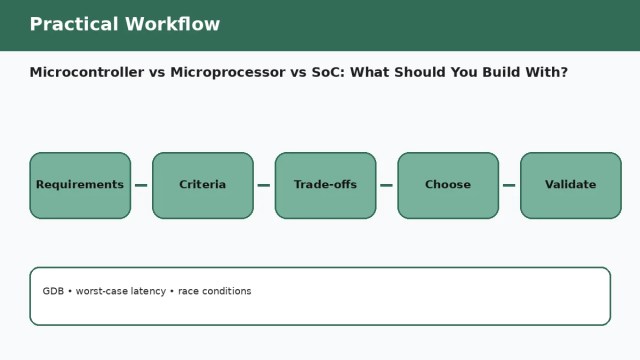

Questions to answer before choosing
- Do I need Linux?
- What is the maximum allowed response latency?
- How much RAM and storage does the application truly need?
- Do I need a GPU/NPU/camera/display pipeline?
- What is the power budget?
- How fast must the device boot?
- What external memory will the PCB require?
- Which safety functions must remain deterministic?
- How large a software stack can the team maintain?
- What is the total system cost, not just chip price?
Related embedded design guides
If you choose an MCU, architecture quality still determines whether the firmware remains maintainable. See how to write Embedded C that uses less RAM and is easier to debug. For real-world reliability, also review why embedded projects fail after deployment.
Primary references
- STMicroelectronics: MCU and MPU product architecture
- STMicroelectronics: MCU-to-MPU architecture and MMU/Linux distinction
- Raspberry Pi: RP2040/RP2350 microcontroller architecture
Bottom line
Choose an MCU when deterministic control, low power and tight integration dominate. Choose an MPU or application SoC when Linux, large memory and rich software dominate. Use heterogeneous architectures when you genuinely need both. The right answer comes from system requirements—not from buying the processor with the highest clock rate.
