A Raspberry Pi Pico project can run perfectly on the bench and then reset the moment a stepper motor accelerates. Another project may stay powered but lose position after a few seconds. These symptoms look like firmware bugs, yet the root cause is often electrical or mechanical.
The fastest way to debug the problem is to separate it into four paths: power integrity, driver current/temperature, STEP timing, and motor load/acceleration. Change one variable at a time and measure the result.
Reset and missed steps are different failures
A Pico reset means the microcontroller lost stable operation: supply voltage dipped, reset was asserted, EMI disturbed the system, or software hit a reset/fault path. A missed step means the motor did not move as commanded even though the controller continued running. The two can happen together, but they need different measurements.
1. Measure the 3.3 V rail during acceleration
Do not begin by rewriting the motion loop. Put an oscilloscope on the Pico 3.3 V rail and trigger around motor startup or a fast acceleration. Motor current changes rapidly; poor grounding, undersized supplies, long leads and shared power paths can turn those current transients into logic-rail disturbances.
The Pico should provide control signals, not motor power. Use an appropriate external motor supply for the driver, join logic and driver grounds deliberately, and follow the driver carrier’s decoupling guidance. Keep the high-current motor loop physically short and away from sensitive analog/reset wiring.
2. Set the driver current limit from the actual carrier
A4988, DRV8825 and TMC-class drivers regulate winding current, but the adjustment method depends on the carrier board and its sense resistors. Never copy a VREF value from a random video unless the board is electrically identical.
Too little current can cause torque loss and missed steps. Too much current can overheat the driver or motor and trigger thermal protection. Run a realistic motion cycle until temperature stabilizes; a short no-load test is not enough.
For a broader driver comparison, see A4988 vs DRV8825 vs TMC2209 for Raspberry Pi Pico projects.
3. Test the pulse waveform, not just the code
STEP/DIR drivers have minimum pulse-width and setup/hold requirements in their datasheets. A software loop that appears to create the right rate can still generate irregular pulses when interrupts, logging or other work delays execution.
Connect a logic analyzer or oscilloscope to STEP and DIR. Verify:
- the STEP high and low times meet the selected driver’s requirements;
- DIR changes early enough before the next step edge;
- pulse spacing is consistent during communication or sensor activity;
- there are no unexpected pulse bursts during startup or reset.
RP2040 provides hardware PWM and Programmable I/O (PIO). Raspberry Pi documents PIO as a deterministic I/O subsystem with independent state machines. If software timing becomes unreliable, a hardware-timed approach can isolate motion pulses from CPU workload.
4. Reduce acceleration before reducing speed
A stepper can run at a high steady speed yet stall while trying to reach it. The rotor must accelerate against inertia and load torque. If the project jumps directly from zero to a high step frequency, the motor may never synchronize with the commanded field.
Start with a conservative acceleration ramp. If missed steps disappear when acceleration is reduced while top speed remains unchanged, the problem is likely torque margin rather than pulse generation.
5. Check the mechanical load
Disconnect the mechanism and test the motor unloaded, then reconnect the load. Check for binding, excessive belt tension, misaligned couplers, tight lead screws and hard end stops. A software fix cannot compensate for a mechanism whose required torque exceeds the available torque.
6. Watch for driver thermal shutdown
Thermal problems often appear after a delay: the system moves correctly, begins skipping or stopping, cools, then works again. Measure driver temperature carefully and observe whether the fault correlates with time and current.
Improve cooling only after confirming the current limit is correct. A heatsink should not be used to hide an unnecessarily high current setting.
7. Separate logic supply from motor noise
Route motor current away from the Pico ground path. Twisted motor pairs, shorter wiring and good connector contact reduce loop area and intermittent resistance. Keep reset/debug lines away from motor leads when possible.
If the Pico resets only with the motor connected, repeat the test with the driver enabled but the motor disconnected, then with the motor powered but motion disabled. These controlled states help reveal whether the disturbance comes from logic, switching or mechanical load transitions.

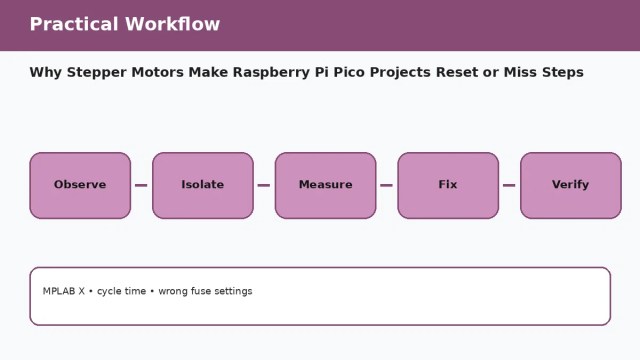

A practical fault-isolation sequence
- Log whether the Pico actually rebooted or only the motor lost position.
- Measure 3.3 V during the failure.
- Verify motor-supply voltage at the driver during acceleration.
- Confirm current limit using the exact carrier-board documentation.
- Measure STEP/DIR waveform timing.
- Lower acceleration substantially and retest.
- Run the motor unloaded.
- Run a long thermal test at realistic duty cycle.
- Reconnect one subsystem at a time until the failure returns.
Do not hide the failure with retries
If firmware simply restarts motion after a fault, position can become silently wrong. Decide what the machine should do after a brownout, driver fault or stall. In many systems the safe response is to stop, report the fault and require re-homing before absolute position is trusted again.
When other buses or sensors fail at the same time as the motor, inspect physical-layer timing and grounding too. Our guide on microcontroller wiring and timing mistakes provides a complementary measurement workflow.
