Auto-generated embedded code can compile, pass static checks and even work in a simulator while still failing on the real board. The reason is simple: embedded software is part of a physical system. Its correctness depends on timing, voltage, peripheral state, interrupt behavior, memory limits, clock configuration and what external devices actually do.
This applies whether the code came from an AI assistant, a configuration generator, a model-based tool or a vendor example. Generation can accelerate implementation, but it does not remove the need to validate the assumptions at the hardware boundary.
Compilation proves much less than most people think
A successful build proves that the compiler accepted the program and linked its symbols. It does not prove that the configured GPIO pin matches the PCB, that an interrupt arrives at the expected rate, that an I²C device powers up in time, or that a DMA transfer cannot overwrite a buffer.
Raspberry Pi’s Pico SDK illustrates the number of hardware domains firmware can touch: GPIO, clocks, DMA, interrupts, I²C, SPI, UART, PWM and PIO all have dedicated hardware APIs. Generated code that is correct inside one subsystem can still break because of the assumptions between subsystems.
Failure mode 1: the pin configuration is logically correct but physically wrong
Generated code often selects a pin from a board definition or prompt. Verify that selection against the exact PCB revision. Check:
- GPIO number versus physical header pin;
- alternate-function mapping;
- input/output direction at reset;
- pull-up or pull-down state;
- voltage tolerance and external level shifting;
- whether another peripheral already owns the pin.
On RP2040, a GPIO can be assigned to software I/O or hardware functions such as UART, I²C, SPI, PWM and PIO. Only one selected function drives the pin at a time. A generated initialization sequence can therefore disconnect a previously configured peripheral simply by changing the GPIO function later.
Failure mode 2: blocking code destroys timing
A common generated pattern is a loop that waits indefinitely for a flag, byte or sensor response. It looks harmless in isolation. In a real system, that loop may prevent watchdog servicing, motor-step generation, network processing or another state machine from running.
Replace unbounded waits with timeouts and explicit recovery paths. For every blocking operation, ask: what happens if the peripheral never responds? If the answer is “the firmware waits forever,” the design is unfinished.
Failure mode 3: interrupt rates are higher than expected
Generated interrupt handlers are often functionally correct but too heavy. Logging, floating-point work, dynamic allocation or long loops inside an ISR can increase latency and starve lower-priority work.
Measure ISR execution time and event rate. Keep handlers bounded, move non-critical work to the main loop/task context, and protect data shared between interrupt and non-interrupt code. Do not assume adding volatile alone makes a multi-step shared operation safe.
Failure mode 4: DMA and buffers look simple until ownership is ambiguous
DMA is powerful because it can transfer data while the CPU does other work. Raspberry Pi documents DMA as a hardware master that moves data independently of the processor. That also means memory can change without a normal CPU instruction touching it.
For every DMA buffer, define who owns it at each moment, its size, alignment requirements, transfer count and what signals completion. Then deliberately test boundary sizes, repeated transfers and restart behavior. A generated “start DMA” function is not enough if the next layer can reuse the buffer too early.
Failure mode 5: generated timing uses the wrong clock assumption
Baud rates, PWM frequencies, step pulses and timeout calculations ultimately depend on clock configuration. If code assumes a default clock but the actual project changes PLL or peripheral clocks, the resulting timing can be wrong while the source code still looks reasonable.
Measure real outputs with a logic analyzer or oscilloscope. A 1 kHz target should become a measured waveform, not a comment in code.
Failure mode 6: code ignores power-up and reset sequencing
Real peripherals do not all become ready at the same instant. A sensor can need startup time; a radio can assert a status line late; a regulator can ramp slowly; a reset line can be held externally.
Generated code frequently treats initialization as a fixed list of API calls. A robust implementation treats it as a state transition with verification: power becomes valid, device identity/status is checked, configuration is applied, and failures have a retry or safe state.
Failure mode 7: error handling was generated for the happy path
Search for every function that can fail and ask what the caller does with that result. Common unfinished patterns include ignoring return codes, retrying forever, silently substituting zero, or printing an error and continuing with invalid state.
Create a fault table:
| Fault | Detection | Safe response |
|---|---|---|
| Sensor missing | ID/read timeout | Disable dependent control and report fault |
| Bus stuck | transaction timeout / line state | attempt bounded recovery, then reinitialize |
| Buffer overflow risk | length/capacity check | reject or truncate deliberately; never write past bounds |
| Motor overload/stall | driver/application feedback | stop or reduce motion according to system requirements |
| Brownout/reset | reset cause / startup state | restore only validated persistent state |

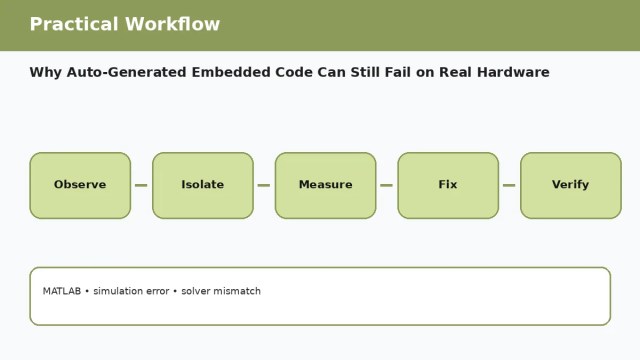

A better workflow for AI-generated embedded code
- Generate one bounded function at a time. Define inputs, outputs, timing constraints and hardware assumptions first.
- Compile with warnings enabled. Treat warnings as review items rather than noise.
- Inspect initialization against the datasheet and schematic. Pin numbers, polarity, clocks and reset defaults must match hardware.
- Build a minimal hardware test. Prove one peripheral before integrating the whole application.
- Measure timing. Use GPIO markers, a logic analyzer or oscilloscope for interrupts, buses and control pulses.
- Inject faults. Disconnect a sensor, delay a response, reset during activity, fill a buffer and exercise timeout paths.
- Test restart behavior. Power-cycle and reset repeatedly; a system that only works after a clean flash is not robust.
- Record the exact generated version and changes. If you cannot reproduce the source that produced the binary, debugging becomes much harder.
Use AI as a reviewer too
After generation, start a separate review pass with a prompt that asks for assumptions and failure modes rather than new code. For example: “Identify every place this driver can block, every shared variable touched by an interrupt/DMA path, every hardware register assumption, and every error return that is ignored. Do not rewrite the code yet.”
The same principle applies before fabrication. Our guide on AI-assisted schematic review shows how to use a model to expose missing questions without treating it as the authority.
Make RAM and state visible
Memory problems are another reason generated code can fail late. Large local arrays can overflow a small stack; repeated dynamic allocation can fragment a constrained heap; buffers can be duplicated unnecessarily. If memory pressure matters, inspect the linker map and measure high-water marks rather than guessing. Our guide on writing embedded C that uses less RAM and is easier to debug expands that workflow.
What “works on hardware” should mean
A convincing validation is more than seeing an LED blink once. Define measurable acceptance criteria: correct frequency or latency, stable operation for a realistic duration, bounded recovery from a disconnected peripheral, no unexpected resets under peak load, and repeatable startup after power cycling.
Generated embedded code becomes engineering code only after those assumptions are tested. Use generation to save typing and accelerate exploration; use measurement, datasheets and controlled fault tests to decide whether the system is actually ready.
