AI-generated circuit suggestions can look convincing because schematics are visually structured and many circuits repeat familiar patterns. The danger is that a plausible topology can still violate a component rating, omit a protection path, use the wrong logic level, or fail because of layout and thermal behavior.
Use AI to generate questions and alternatives—not as the source of truth for electrical limits. If you want a structured review workflow, see How to Use AI to Review a Schematic Before You Build the PCB.
1. Hallucinated or outdated component facts
A model may quote the wrong pinout, package, current rating, or recommended operating range. Verify every critical number against the current manufacturer datasheet and check the exact suffix/package you are buying.
2. Confusing absolute maximum with normal operation
Absolute-maximum ratings describe limits you should not exceed; they are not design targets. A component can be below absolute maximum and still outside recommended operating conditions. Design from the recommended range with margin.
3. Missing startup and sequencing behavior
Power rails do not appear instantaneously. Regulators have soft start and dropout behavior; MCUs have reset and brownout thresholds; sensors may require delays before communication. An AI-generated steady-state schematic may omit the sequence that makes the system boot reliably.
4. Treating logic levels as generic “digital” signals
Check VIH, VIL, VOH, VOL, tolerance, open-drain requirements, and whether a pin is 5 V tolerant. “Both are I2C” does not prove that two devices can be connected directly.
5. Inadequate decoupling and power distribution
A capacitor placed somewhere near an IC is not automatically effective. High-frequency current loops, regulator stability requirements, capacitor ESR, placement, and return paths matter. Follow the datasheet layout recommendations for sensitive or high-current devices.
6. Ignoring thermal limits
Calculate dissipation at worst-case voltage, load, switching frequency, ambient temperature, and PCB copper conditions. A linear regulator that is electrically correct can overheat badly when dropping several volts at high current.
7. Assuming ERC proves the design works
KiCad documentation is clear that Electrical Rules Check can identify many connectivity problems but cannot prove that a schematic will function. AI review has the same limitation. It can catch classes of mistakes without validating the physics.

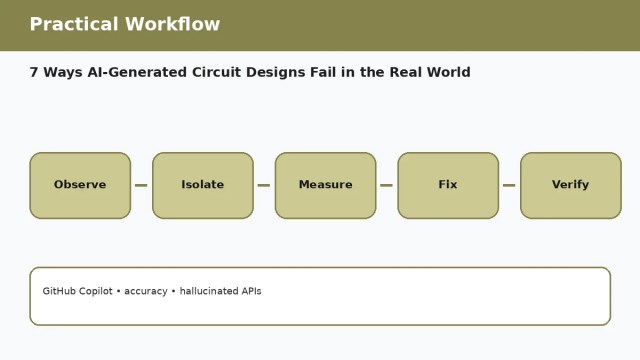

A verification workflow that catches these failures
- Write input/output, load, timing, thermal, and fault requirements.
- Verify every critical component from its primary datasheet.
- Calculate power and thermal margins.
- Review startup, reset, and protection behavior.
- Run ERC, then resolve every warning intentionally.
- Review layout-sensitive loops and return paths.
- Prototype with current limiting when appropriate.
- Measure every supply rail at startup and full load.
- Test shorts, disconnects, brownouts, and maximum load safely.
If the fabricated board is already failing, follow our dead-PCB measurement workflow.
What AI is good at
Ask it to produce a failure-mode checklist, compare candidate topologies, identify which datasheet sections deserve review, or explain an ERC warning. Those outputs are valuable because they are easy to verify.
Conclusion
The dangerous AI circuit is not an obviously absurd one. It is the plausible circuit that fails only at temperature, startup, maximum load, or after a component substitution. Use AI to widen the review, then use primary documentation and measurements to narrow the design to what is actually safe and reliable.
